UQESH® Bio-Based Polyurethane Coating

Product Case · TF

TF
Elastic Crack-Bridging Floor System

UQESH® TF – elastic, crack-bridging floor system for libraries, schools, hospitals and environments with demands on underfoot comfort and acoustics.

An elastic floor for environments with heavy foot traffic and prolonged standing

Thanks to its elasticity, UQESH® TF is well suited to spaces where staff or visitors stand or move for long periods, such as libraries, schools, hospitals and gyms – the floor is gentler on joints and feet than a hard, rigid floor.

The system can be applied not only to concrete, but also directly on top of existing wood flooring. When renovating a wood floor, the old surface doesn't need to be torn up – sanding the wood surface to improve adhesion is enough before UQESH® TF is applied.

UQESH® TF is available in two variants with different levels of elasticity: TF575, which is more elastic, and TF585, which is stiffer. The variant that suits your project best depends on the floor's substrate and how much movement or cracking the system needs to bridge – contact UQESH's technical department for a recommendation.

UQESH® TF

Elastic Crack-Bridging Floor System 2mm — technical parameters apply to TF 585

Uses

Libraries, schools, preschools and exhibition halls. Pharmaceutical factories and hospitals with noise-reduction requirements. Storage and packaging facilities. Other commercial and industrial environments requiring underfoot comfort, acoustic properties and crack resistance.

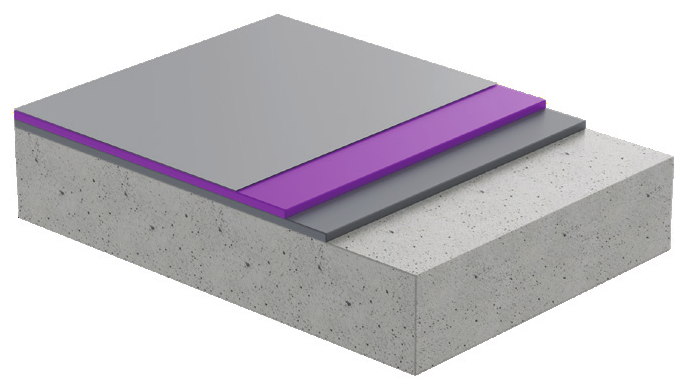

System Structure

System Structure

Primer: UQESH® PF-M
Intermediate Layer: UQESH® TF 585/575
Topcoat (optional): UFlex® TP325/TAP750/TAP760

Technical Parameters

7d Compressive Strength≥40MPaISO 679-2009
7d Flexural Strength≥10MPaISO 679-2009
7d Tensile Bond Strength≥2.0MPaISO 4624-2016
Shore Hardness (Type A)≥85AISO 868:2003
Dry Coefficient of Friction≥0.5ASTM C1028-07
Slip Resistance RatingR9-R10 (with topcoat)DIN 51130
Chemical ResistanceResistant to a variety of chemicals. Contact UQESH's technical department for specific resistance.

Dosage Instructions

System ComponentProduct Namekg/m²
PrimerUQESH® PF-M1.5
Intermediate LayerUQESH® TF 585/5751.5
Topcoat (optional)UFlex® TP325 / TAP750 / TAP7600.12

Properties

ColourUQESH Multicolor System, with customizable colours.
Service Temperatures-10 ~ 50 °C. Short-term high-temperature steam rinsing.

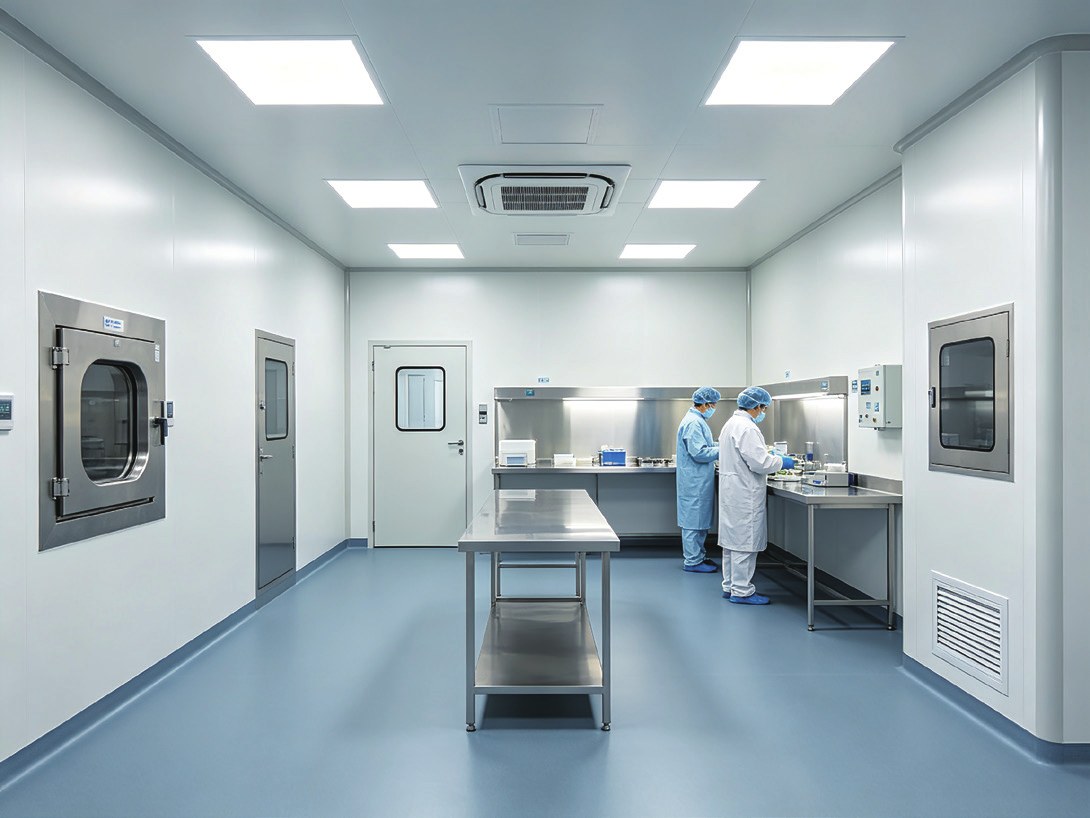

TF – pharmaceutical factory/cleanroom
TF – pharmaceutical factory/cleanroom

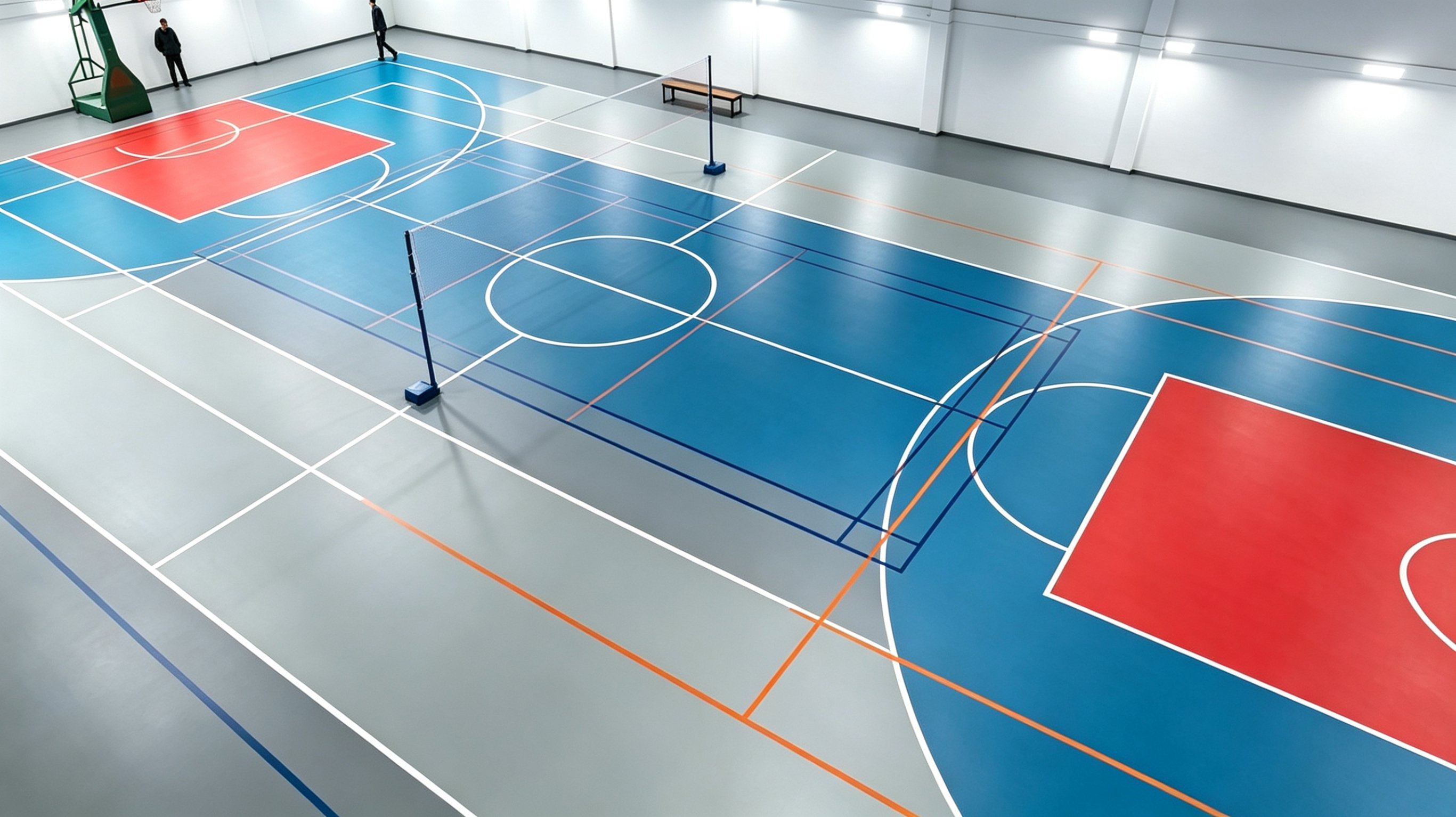

TF – multi-court sports hall
TF – multi-court sports hall

Suitable For
