UQESH® IF-EC
Anti-Static Waterborne Polyurethane Mortar Self-Leveling System, 3-4 mm
Uses

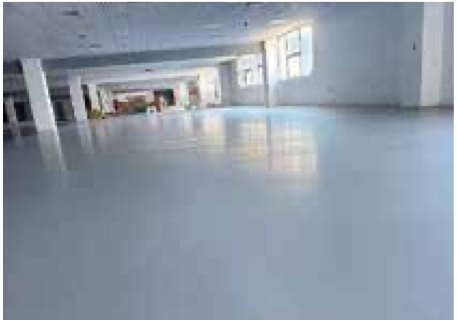

Chemical industry, printing facilities, renewable energy plants; laboratories and cosmetics manufacturing; and electronic component production and assembly.

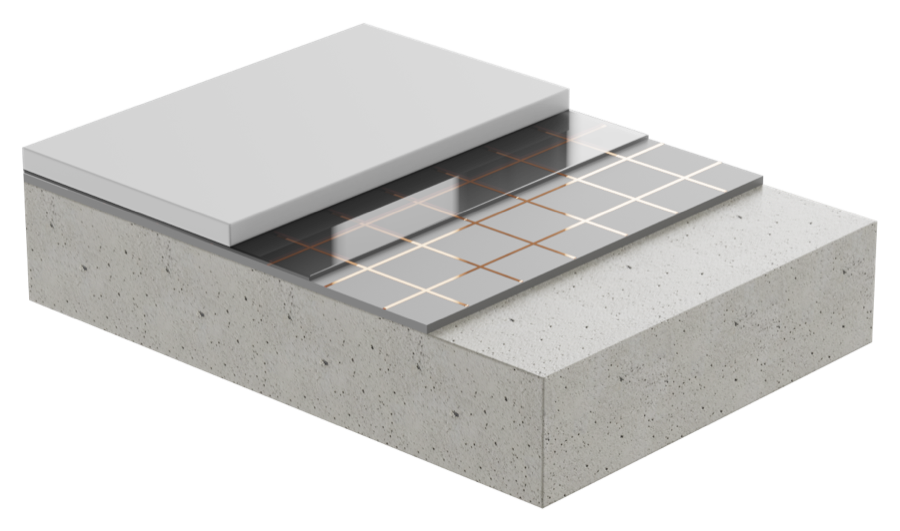

System Structure
Primer: UQESH® IF
Conductive Filler: UQESH® HEFloor PT-EC
Copper Foil: Copper Tape
Topcoat: UQESH® IF-EC
Technical Parameters
| Compressive Strength (7 days) | ≥40MPa | ISO 679-2009 |
| Flexural Strength (7 days) | ≥13MPa | ISO 679-2009 |
| Tensile Bond Strength (7 days) | ≥2.0MPa | ISO 4624-2016 |
| Hardness (Shore D) | ≥80 | ISO 868:2003 |
| Dry Coefficient of Friction | ≥0.5 | ASTMC1028-07 |
| Impact Resistance | 1 kg, 200 cm: No cracking, no flaking | ISO 6272-1:2011 |
| VOC (Volatile Organic Compounds) | ≤10 g/l | ISO 4624-2016 |

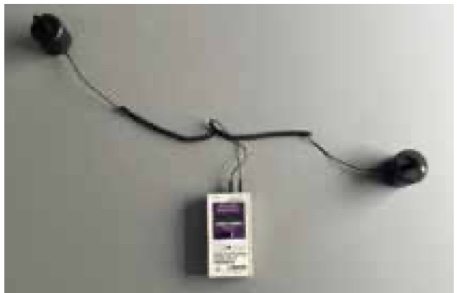

| Electrical Resistance | 1×10⁶ ~ 1×10⁹ Ω | IEC 61340-4-1 |
| Chemical Resistance | Resistant to a variety of chemicals. For specific resistance, consult UQESH Technical Department. | ISO 2812-1:2017 |
Dosage Instructions
| System Component | Product | 3 mm | 4 mm |
|---|---|---|---|
| Primer | UQESH® IF | 2~3 | 4~5 (2 coats) |
| Conductive Filler | UQESH® HEFloor PT-EC | 0.4 | 0.4 |
| Copper Foil | Copper Tape | / | / |
| Topcoat | UQESH® IF-EC | 3~4 | 3~4 |
Properties
| Colour | UQESH colour system. |
| Service Temperatures | -20 ~ 70 °C. Withstands short-term steam cleaning. |
